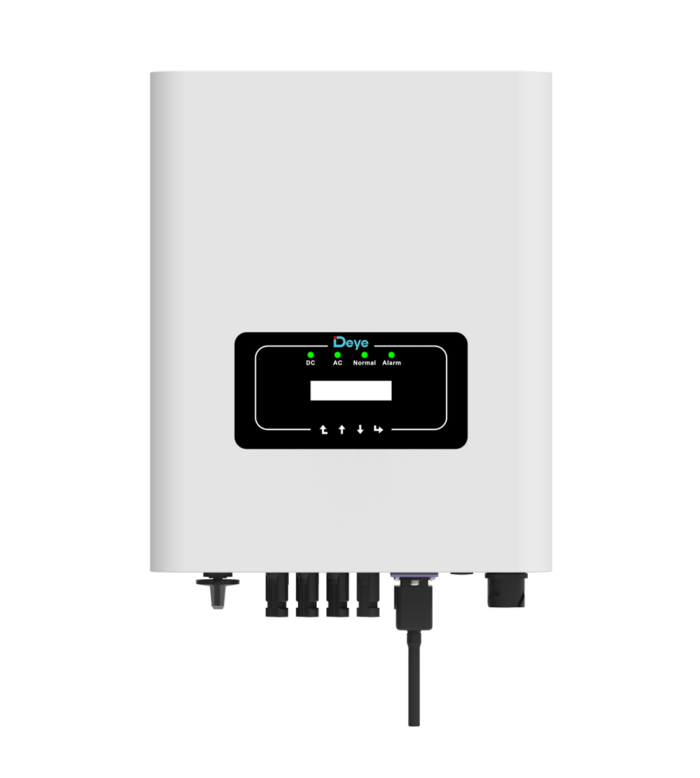

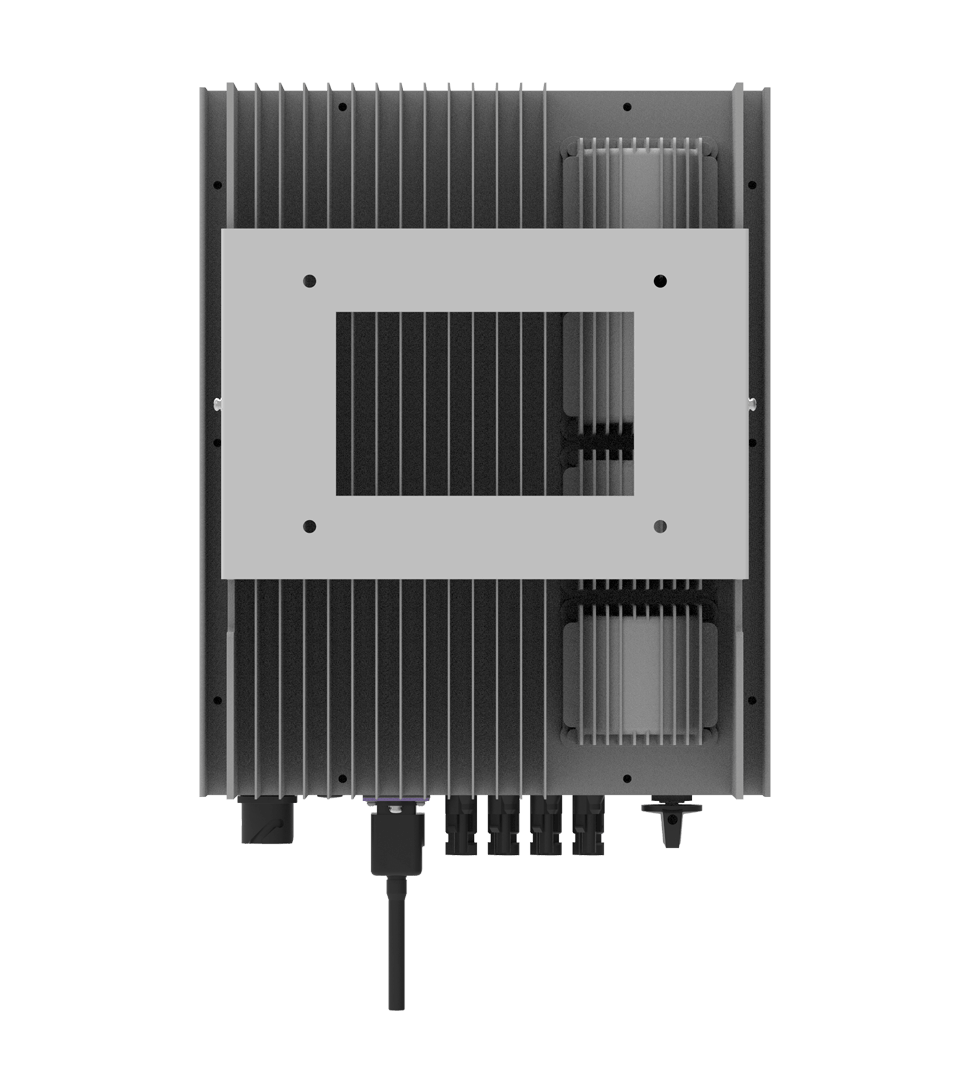

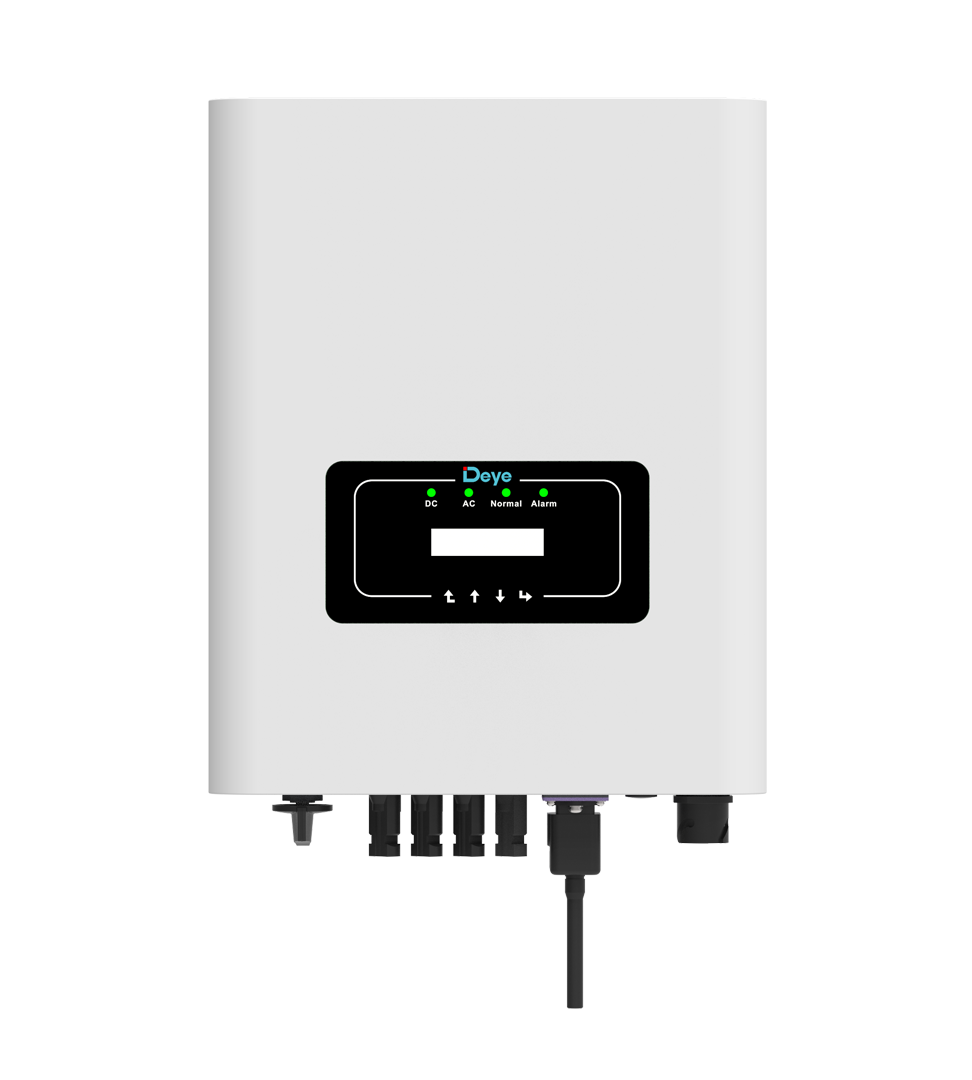

SUN-4/5/6/7/8/10/12/15K-G06P3-EU-AM2
Saugus ir patikimas / išmanus / patogus naudoti
Šios serijos inverteris specialiai sukurtas trifazėms fotovoltinėms sistemoms, apimančioms platų 4 kW, 5 kW, 6 kW, 7 kW, 8 kW, 10 kW, 12 kW galios diapazoną. Kompaktiško dizaino, jį lengva įrengti ir eksploatuoti. Jis palaiko plačią kintamosios srovės išėjimo įtampą, kad užtikrintų ilgesnę darbo valandą.
Nuotolinio išjungimo funkcija. Išmanioji stebėjimo platforma.
Išmaniosios stebėjimo platformos dėka „Deye” visos serijos inverterių produktai palaiko nuotolinio išjungimo funkciją, kai įvyksta avarija.Parametrų nustatymas ir FW atnaujinimas nuotoliniu būdu palengvina fotovoltinės jėgainės eksploataciją ir valdymą.
SPECIFIKACIJOS
| Model | SUN-4K-G06P3 | SUN-5K-G06P3 | SUN-6K-G06P3 | SUN-7K-G06P3 | SUN-8K-G06P3 | SUN-10K-G06P3 | SUN-12K-G06P3 |
SUN-15K-G06P3 |
| Input Side |
||||||||
| Max. DC Input Power(kW) | 5.2 | 6.5 | 7.8 | 9.1 | 10.4 | 13 | 15.6 | 19.5 |
| Max. DC Input Voltage (V) | 1100 | |||||||
| Start-up DC Input Voltage(V) | 140 | |||||||
| MPPT Operating Range(V) | 120~1000 | |||||||
| Max. DC Input Current(A) | 13+13 | 13+26 | ||||||
| Max. Short Circuit Current (A) | 19.5+19.5 | 19.5+39 | ||||||
|
No.of MPP Trackers
|
2 | |||||||
| No.of Strings per MPP Tracker | 1+1 | 1+2 | ||||||
| Output Side |
||||||||
| Rated Output Power(kW) | 4 | 5 | 6 | 7 | 8 | 10 | 12 | 15 |
| Max. Active Power(kW) | 4.4 | 5.5 | 6.6 | 7.7 | 8.8 | 11 | 13.2 | 16.5 |
| Rated Output Voltage/Range (V) |
3L/N/PE 220/380V, 230/400V 0.85Un-1.1Un (this may vary with grid standards)
|
|||||||
| Rated Grid Frequency(Hz) | 50 / 60 (Optional) | |||||||
| Operating Phase | Three phase | |||||||
| Rated AC Grid Output Current(A) | 6.1/5.8 | 7.6/7.2 | 9.1/8.7 | 10.6/10.1 | 12.1/11.6 | 15.2/14.5 | 18.2/17.4 | 22.8/21.8 |
| Max. AC Output Current(A) | 6.7/6.4 | 8.3/8 | 10/9.6 | 11.7/11.1 | 13.312.8 | 16.7/15.9 | 20/19.1 | 25/24 |
| Output Power Factor | 0.8 leading to 0.8 lagging | |||||||
|
Total Harmonics Current Distortion (THDi)
|
<3% | |||||||
| DC Injection Current(mA) | <0.5% | |||||||
| Grid Frequency Range | 45~55 or 55~65 (Optional) | |||||||
| Efficiency |
||||
| Max.Efficiency | 98.1% | 98.2% | 98.3% | 98.5% |
| Euro Efficiency | 97.5% | |||
| MPPT Efficiency | >99% | |||
| Protection | ||
| DC Reverse-Polarity Protection | Yes | |
| AC Short Circuit Protection | Yes | |
| AC Output Overcurrent Protection | Yes | |
| Output Overvoltage Protection | Yes | |
| Insulation Resistance Protection | Yes | |
| Ground Fault Monitoring | Yes | |
| Islanding Protection | Yes | |
| Temperature Protection | Yes | |
| Integrated DC Switch | Yes | |
| Remote software upload | Yes | |
| Remote change of operating parameters | Yes | |
| Surge protection | DC Type II / AC Type II | |
| General Data |
|||||
|
Cabinet Size (WxHxD mm)
|
283×463×178 (Excluding Connectors and Brackets)
|
||||
| Weight(kg) | 11 | ||||
| Topology | Transformerless | ||||
| Internal Consumption | <1W (Night) | ||||
| Running Temperature | -25~60℃,>45℃ Derating | ||||
| Ingress Protection | IP65 | ||||
| Noise Emission(Typical) | <45 dB | ||||
| Cooling Concept |
Free Cooling
|
||||
|
Permissible Altitude (m)
|
4000 | ||||
| Warranty | 5 Years | ||||
| Grid Connection Standard |
IEC 61727, IEC 62116, CEI 0-21, EN 50549, NRS 097, RD 140, UNE 217002,
OVE-Richtlinie R25, G99, VDE-AR-N 4105
|
||||
| Operating Surroundings Humidity | 0-100% | ||||
| Safety EMC/Standard | IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2 | ||||
| Features | |
| Display | LCD1602 |
| Interface | RS485/RS232/Wifi/LAN |
