SUN-29.9/30/35/40/50K-SG01HP3-EU-BM2/3/4 | 5-25 kW | Trijų fazių | 2 MPPT | Hibridinis keitiklis | Aukštos įtampos akumuliatorius
Saugus ir patikimas / Išmanus / Patogus naudoti

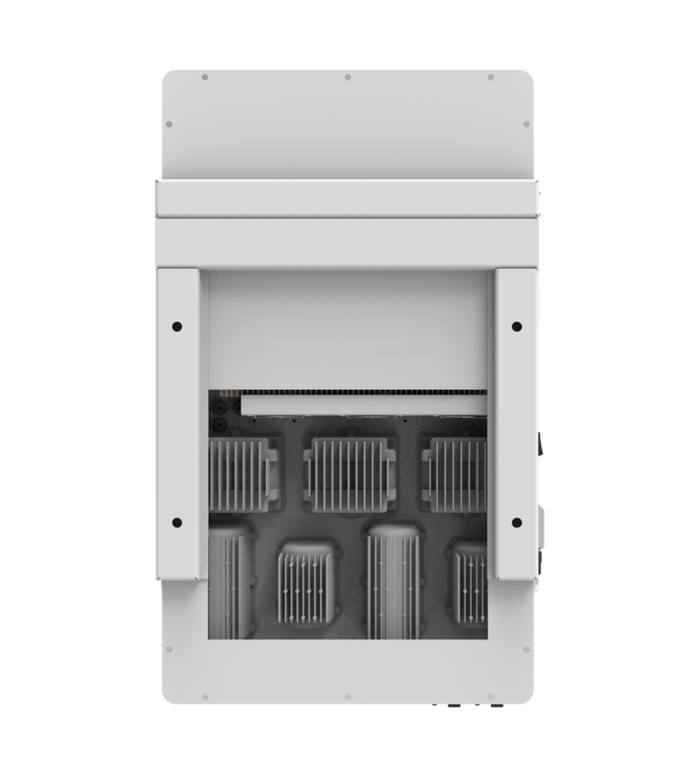

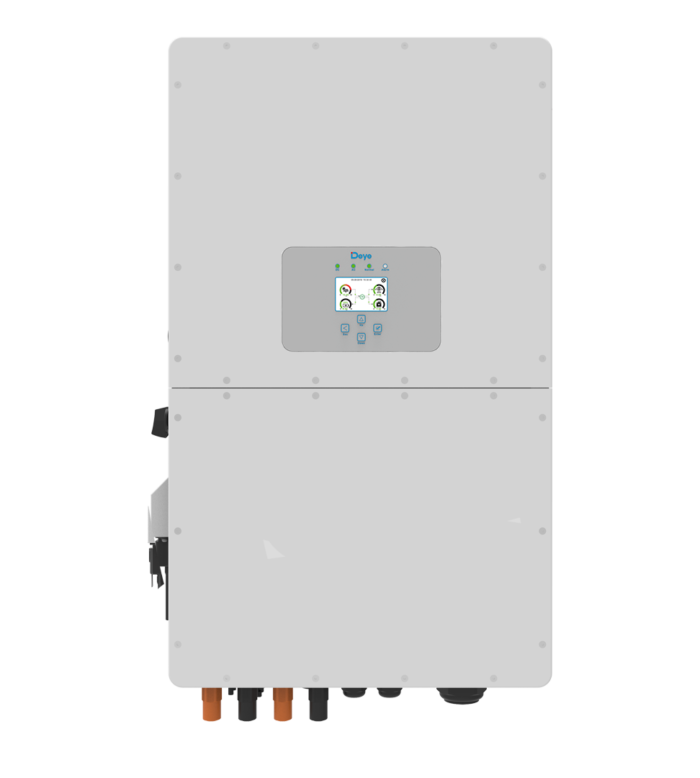

SUN-29.9/30/35/40/50K-SG01HP3-EU-BM2/3/4 yra visiškai naujas trifazis hibridinis inverteris su aukštos įtampos 160-800 V akumuliatoriumi, užtikrinančiu sistemos efektyvumą ir mažesnį šilumos išsklaidymą. Kompaktiškos konstrukcijos ir didelės galios tankio ši serija palaiko 1,3 DC/AC santykį, todėl taupomos investicijos į įrenginį. Jis palaiko trifazį nesubalansuotą išėjimą, išplečiant taikymo scenarijus.
Nuotolinio išjungimo funkcija. Išmanioji stebėjimo platforma.
Išmaniosios stebėjimo platformos dėka „Deye” visos serijos inverterių produktai palaiko nuotolinio išjungimo funkciją, kai įvyksta avarija.Parametrų nustatymas ir FW atnaujinimas nuotoliniu būdu palengvina fotovoltinės jėgainės eksploataciją ir valdymą.
SPECIFICATIONS
| Model | SUN-3K-SG04LP1-24-EU | SUN-3K-SG04LP1-EU |
SUN-3.6K-SG04LP1-EU | SUN-5K-SG04LP1-EU | SUN-6K-SG04LP1-EU |
| Battery Input Data | |||||
| Battery Type | Lead-acid or Lithium-ion | ||||
| Battery Voltage Range (V) | 20~30 | 40~60 | 40~60 | 40~60 | 40~60 |
| Max. Charging Current (A) | 140 | 70 | 90 | 120 | 135 |
| Max. Discharging Current (A) | 140 | 70 | 90 | 120 | 135 |
| Charging Curve | 3 Stages / Equalization | ||||
| External Temperature Sensor | Yes | ||||
| Charging Strategy for Li-Ion Battery | Self-adaption to BMS | ||||
| PV String Input Data | |||||
| Max. DC Input Power (W) | 3900 | 3900 | 4680 | 6500 | 7800 |
|
Rated PV Input Voltage (V)
|
370(125~500) | ||||
|
Start-up Voltage (V)
|
125 | ||||
|
MPPT Voltage Range (V)
|
150~425 | ||||
| Full load DC voltage range(V) | 300~425 | ||||
| PV Input Current (A) | 13 | 13+13 | |||
| Max. PV ISC (A) | 17 | 17+17 | |||
| No.of MPPT Trackers | 1 | 2 | |||
| No.of Strings Per MPPT Tracker | 1 | 1+1 | |||
| AC Output Data | |||||
| Rated AC Output and UPS Power (W) | 3000 | 3600 | 5000 | 6000 | |
|
Max AC Output Active Power (W)
|
3300 | 3690 | 5500 | 6600 | |
| AC Output Rated Current (A) | 13.6/13 | 16.4/15.7 | 22.7/21.7 | 27.3/26.1 | |
|
Max. AC Output Current (A)
|
15/14.3 | 18/17.2 | 25/23.9 | 30/28.7 | |
| Max. Continuous AC Passthrough (A) | 35 | 40 | |||
|
Peak Power (off grid)
|
2 time of rated power, 10 S
|
||||
|
Power Factor Adjustment Range
|
0.8 leading to 0.8 lagging | ||||
|
Power Factor
|
1 | ||||
| Output Frequency and Voltage |
50/60Hz; L/N/PE 220/230Vac
|
||||
| Grid Type | Single Phase | ||||
|
Total Harmonics Current Distortion (THDi)
|
<3% (of nominal power)
|
||||
|
DC Current Injection
|
<0.5% In
|
||||
| Efficiency | |
| Max. Efficiency | 97.60% |
| Euro Efficiency | 96.50% |
| MPPT Efficiency | 99.90% |
| Protection | |
|
Integrated
|
Anti-islanding Protection, PV String Input Reverse Polarity Protection,
Insulation Resistor Detection, Residual Current Monitoring Unit, Output Over Current Protection,
Output Shorted Protection, Surge Protection
|
|
Over Voltage Category
|
DC Type II / AC Type Ⅲ |
| Certifications and Standards | |
| Grid Regulation |
IEC 61727, IEC 62116, CEI 0-21, EN 50549, NRS 097, RD 140, UNE 217002,
OVE-Richtlinie R25, G99, VDE-AR-N 4105
|
| Safety EMC / Standard | IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2 |
| General Data | ||
| Operating Temperature Range (℃) | -40~60℃, >45℃ Derating | |
| Cooling |
natural cooling
|
|
| Noise (dB) |
≤30 dB
|
|
| Communication with BMS | RS485; CAN | |
| Weight (kg) | 14 | 15.1 |
|
Cabinet Size (WxHxD mm)
|
330×433×238 (Excluding Connectors and Brackets)
|
|
| Protection Degree | IP65 | |
| Installation Style | Wall-mounted | |
| Warranty |
5 Years (10 Years Optional)
|
|
